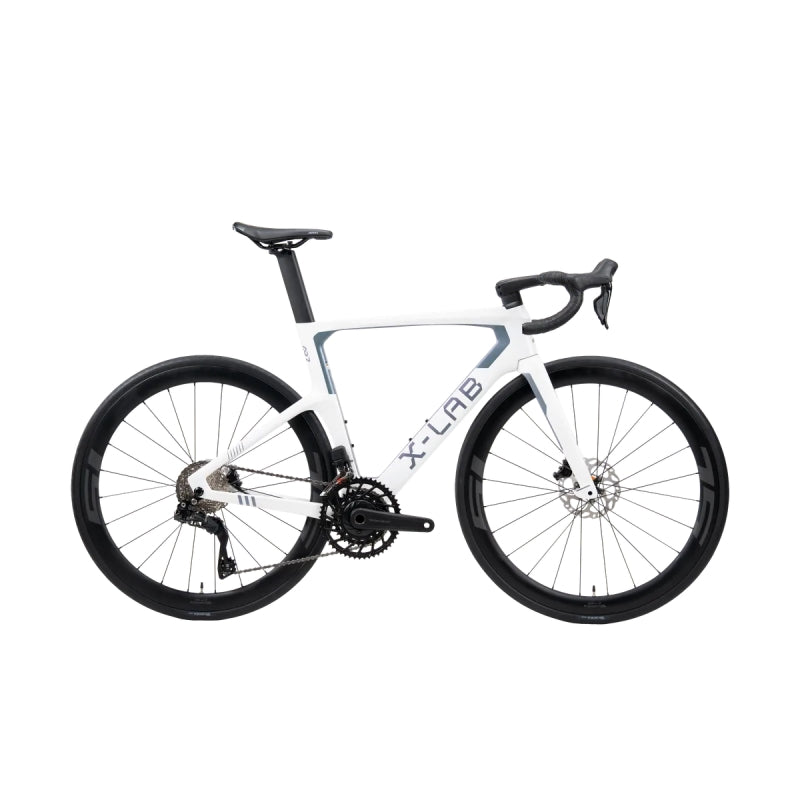

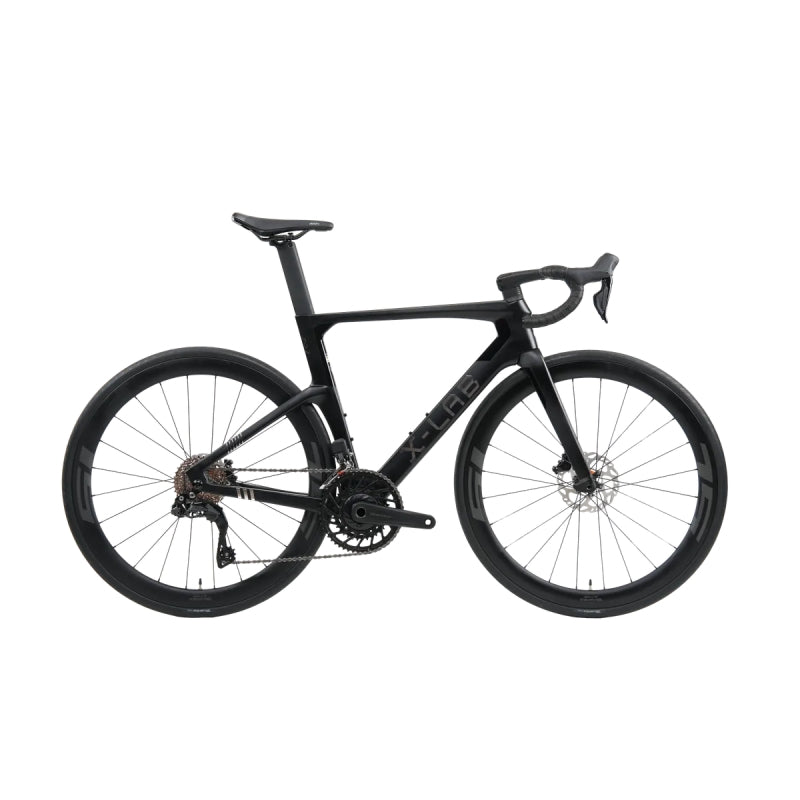

X-lab AD7 105 DI2
X-lab AD7 105 DI2 - Black / X-SMALL is backordered and will ship as soon as it is back in stock.
Description
Description
| Model | AD7 105 Di2 |
| Frame | X-LAB Carbon Frame, UDH Compatible |
| Fork | X-LAB Carbon Fork, 100x12mm Thru-axle |
| Stem | Branta Carbon Integrated |
| Handlebar | |
| Seatpost | XDS Carbon Seatpost, Aero Shape |
| Rear Derailleur | Shimano 105 Di2 RD-R7150 |
| Front Derailleur | Shimano 105 Di2 FD-R7150 |
| Shifters | Shimano 105 Di2 ST-R7170 |
| Brakes | Shimano 105 BR-R7170 |
| Cassette | Shimano 105 CS-R7101, 11-34T |
| Crankset | Branta Aluminum Power Meter Crankset, 52-36T, 24mm Steel Spindle, w/Apple Find My Anti-Theft Technology |
| Bottom Bracket | T47 24mm |
| Rotors | Shimano SM-RT70, F:160mm R:140mm |
| Chain | Shimano CN-M7100 |
| Wheelset | Branta C45 SL, Carbon Rim, PSR Wing20 Aero Spoke |
| Tires | Branta R630F 700x30C, 60TPI |
| Saddle | FIZIK Aidon, Manganese Rail |
| Weight | 8.44KG (Size M) |
| Frame | Size | XS | S | M | L | XL |
| A | Seat Tube Length (mm) | 470 | 495 | 520 | 540 | 565 |
| B | Top Tube Length (mm) | 504 | 523 | 540 | 559 | 579 |
| C | Head Tube Length (mm) | 105 | 118 | 130 | 148 | 171 |
| D | Seat Tube Angle (deg) | 75 | 75 | 74 | 73 | 73 |
| E | Head Tube Angle (deg) | 71 | 72 | 73 | 73 | 73 |
| F | Chainstay Length (mm) | 410 | 410 | 410 | 410 | 410 |
| G | Wheelbase (mm) | 975 | 977 | 982 | 992 | 1007 |
| H | Fork Rake/Offset (mm) | 53 | 53 | 45 | 45 | 45 |
| I | BB Drop (mm) | 72 | 72 | 70 | 70 | 70 |
| J | Stack (mm) | 510 | 525 | 540 | 558 | 580 |
| K | Reach (mm) | 368 | 376 | 387 | 395 | 405 |
| L | Front Center (mm) | 575 | 582 | 583 | 592 | 607 |
| Trail (mm) | 67 | 62 | 62 | 61 | 59 |
| Components | Size | XS | S | M | L | XL |
| Stem | 90 | 90 | 100 | 100 | 120 | |
| Handlebar | 360 | 360 | 380 | 380 | 400 | |
| Crankset | 165 | 165 | 170 | 170 | 172.5 | |
| Seat Post | 310 | 310 | 310 | 310 | 310 |
| Sizing | Size | XS | S | M | L | XL |
| Recommended Rider Height | 148-158 cm 4'10"-5'2" | 158-168 cm 5'2"-5'6" | 168-176 cm 5'6"-5'9" | 176-183 cm 5'9"-6'0" | 183-191 cm 6'0"-6'3" |
